What Is a Tesla Cabin Air Filter? The 2-Year Replacement Guideline and How It Keeps Dust and Pollen Out, Checked in Official Sources

Checked 2026-10-21 / about 6 min read

Contents
  1. The conclusion: replace every 2 years; the procedure is for the experienced
  2. Outline of the procedure (official guidance)
  3. Warning: high-voltage cables
  4. The Model Y HEPA filter
  5. FAQ
  6. Summary
  7. Sources (checked 2026-10-16)

According to Tesla's official guidance for the Model 3, cabin air filters keep pollen, industrial fallout, road dust and other particles from entering the cabin through the vents. Tesla recommends replacing them every 2 years (every year in China). Orange high-voltage cables are attached to the filter cover and must not be stretched, bent or damaged, because of the risk of high-voltage shock. After replacing, reset the maintenance interval on the screen.

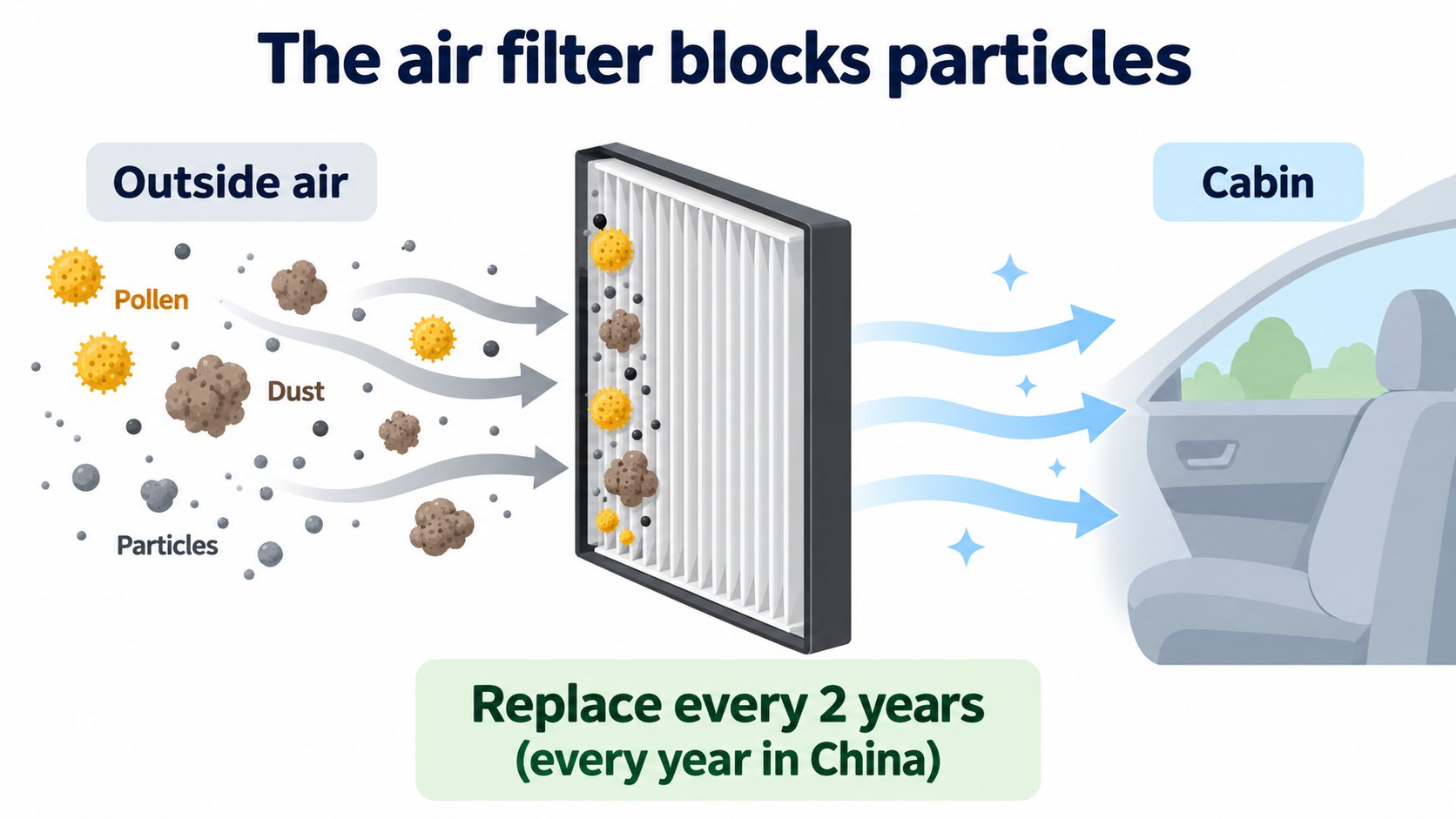

A cabin air filter removes pollen and dust from outside air before it reaches the cabin (AI-generated concept diagram, different from the real position of parts)
Fig. 1: The filter blocks particles (AI-generated; a concept diagram).

A car's climate system can draw outside air into the cabin. The cabin air filter blocks particles at that entrance. We summarize the Model 3 owner's manual ("Parts and Accessories", North America) and the Do It Yourself page "Replacing Cabin Filters".

The conclusion: replace every 2 years; the procedure is for the experienced

The Model 3 guidance says (summary):

  • Model 3 has air filters that prevent pollen, industrial fallout, road dust and other particles from entering the cabin through the vents.
  • Tesla recommends replacement every 2 years (every year in China). Filters are sold in the Tesla Shop.
  • The schedule may differ with the environment. The Maintenance Summary under Controls > Service > Maintenance tracks the item.

The "Maintenance Service Intervals" page also lists the cabin air filter every 2 years.

Outline of the procedure (official guidance)

  1. Turn off climate control. Move the right front seat fully back and remove the floor mat.
  2. Release the right footwell cover clips and disconnect two connectors by their plastic parts (do not pull the wires).
  3. Release the right side panel from the center console.
  4. Remove the filter cover (T20 screw, or squeeze two tabs at the bottom on some cars).
  5. Fold the upper filter's tab up and pull it out; fold the lower filter's tab down, lift and remove it.
  6. Insert the new filters with the arrows facing the rear of the car, lower first, then upper.
  7. Refit the cover (screw to 1.2 Nm), connectors, panel, mat and seat.
  8. Reset the cabin air filter maintenance item on the screen.

[A note for beginners]

Nm (newton-meters) is a unit of tightening force. This outline is what the guidance says; whether to do it yourself depends on how experienced you are. The maintenance page says you can do such items yourself or enlist Tesla or an independent repairer.

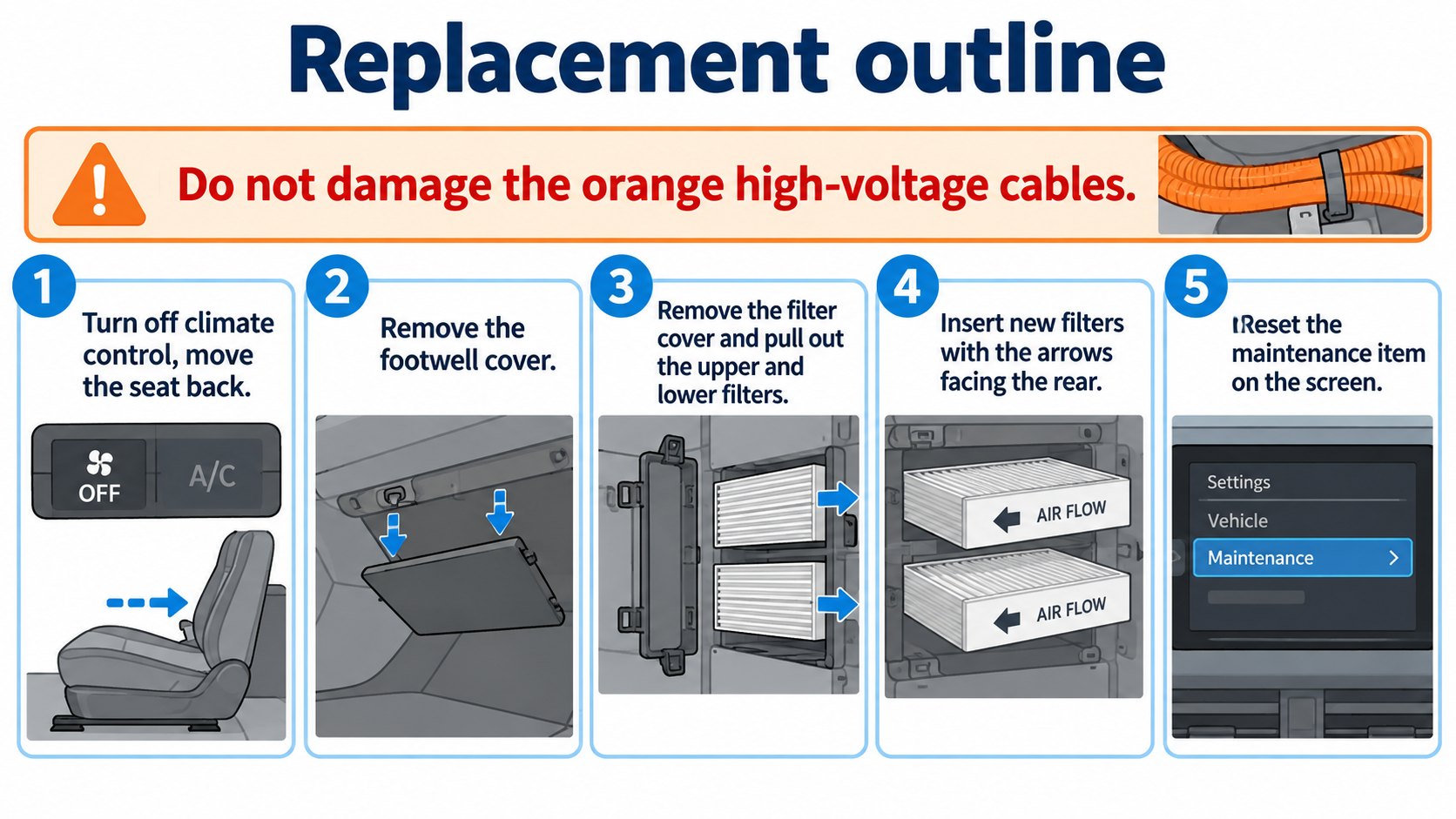

Replacement outline: remove the cover, swap upper and lower filters, arrows to the rear, reset (AI-generated concept diagram based on the official guidance)
Fig. 2: Replacement outline (AI-generated; a concept diagram).

Warning: high-voltage cables

  • Orange high-voltage (HV) cables are attached to the filter cover. Do not stretch, bend or damage them.
  • If they are damaged, stop immediately. HV shock can cause serious injury or death.
  • If the HVAC module has no filter cover, refit the trim and contact Tesla.

The Model Y HEPA filter

The Model Y owner's manual ("Operating Climate Controls", North America) says (summary):

  • Cars with the medical-grade HEPA filter keep cabin air quality high while climate control is on and outside air is entering (recirculate off).
  • It removes particles such as pollution, allergens, bacteria, pollen, mold spores and viruses.
  • The HEPA filter and the secondary filtration system contain activated carbon for odors and gases. But gases such as carbon monoxide are not effectively removed by activated carbon.
  • Bioweapon Defense Mode uses positive pressure inside the cabin to minimize the outside air that can enter.

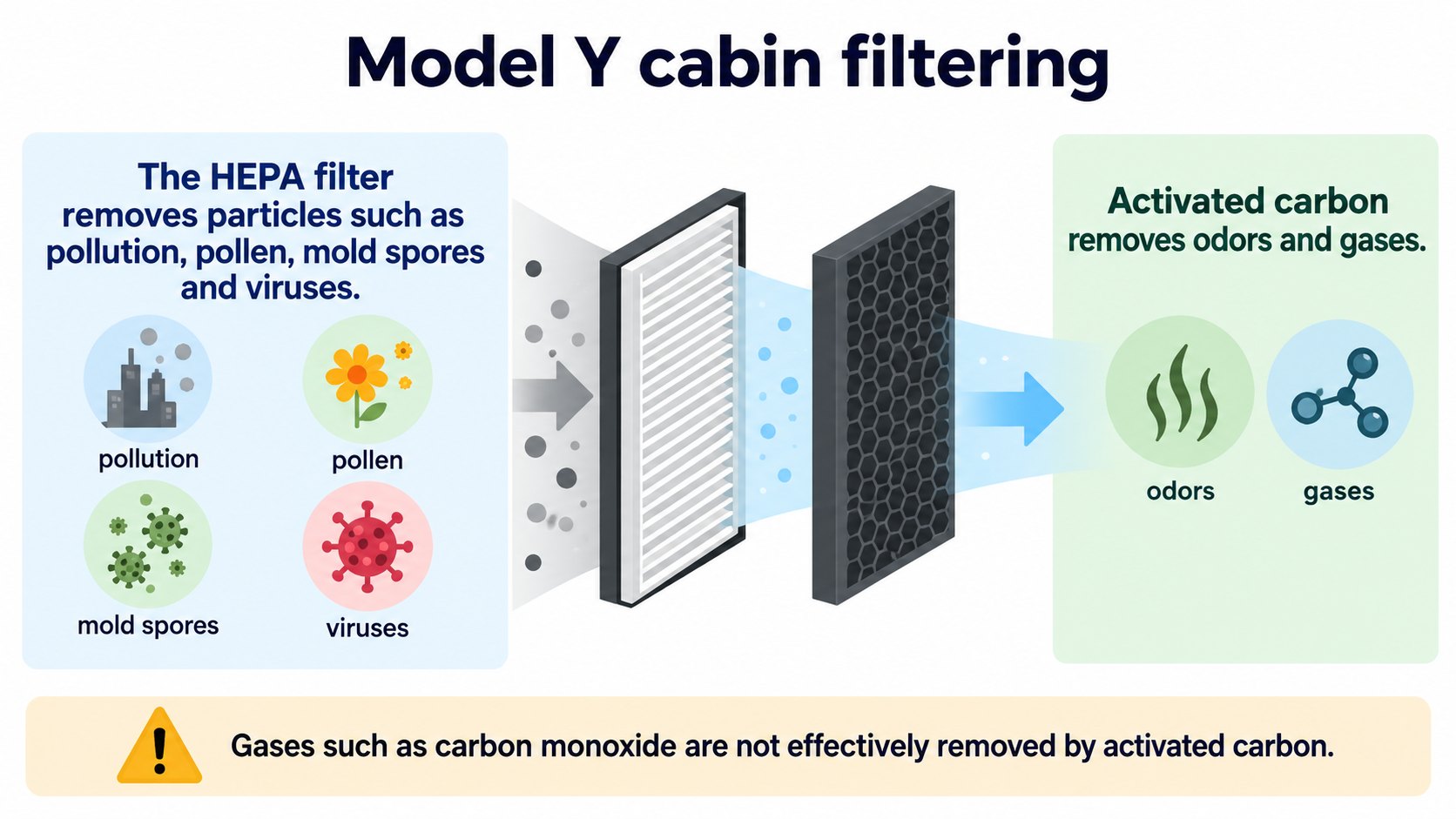

Model Y filtering: HEPA plus activated carbon; carbon monoxide is not removed (AI-generated concept diagram based on the owner's manual)
Fig. 3: What HEPA and activated carbon do, and their limit (AI-generated; a concept diagram).

FAQ

How often should the cabin air filter be replaced?

Tesla recommends every 2 years (yearly in China). It may vary with the environment.

Can I replace it myself?

The steps are in the official guidance, but the work is near high-voltage cables. If you are not experienced, ask Tesla Service.

What do I do afterwards?

Reset the cabin air filter maintenance item on the screen.

Does the Model Y HEPA remove carbon monoxide?

The manual says gases such as carbon monoxide are not effectively removed by activated carbon.

Summary

  • The cabin air filter blocks pollen, dust and other particles; replace every 2 years (yearly in China).
  • Do not damage the orange high-voltage cables; stop if you do.
  • Afterwards, reset the maintenance item on the screen.
  • The Model Y's HEPA removes particles, activated carbon handles odors and gases, and carbon monoxide is not removed.

Sources (checked 2026-10-16)

This article is for learning about science and technology and is not investment advice. Facts and the author's reading are kept separate. The figures are AI-generated illustrations.
